Stainless Steel Snap Bands and Elastic Strips for Filter Bags and Industrial Sealing

Stainless Steel Snap Bands and Elastic Strips for Filter Bags and Industrial Sealing

How to Choose the Right Snap Band Material for Filter Bags

Snap Band Elasticity, Strength, and Shape Recovery Requirements

Excellent Elastic Recovery and Long-Term Resistance to Deformation

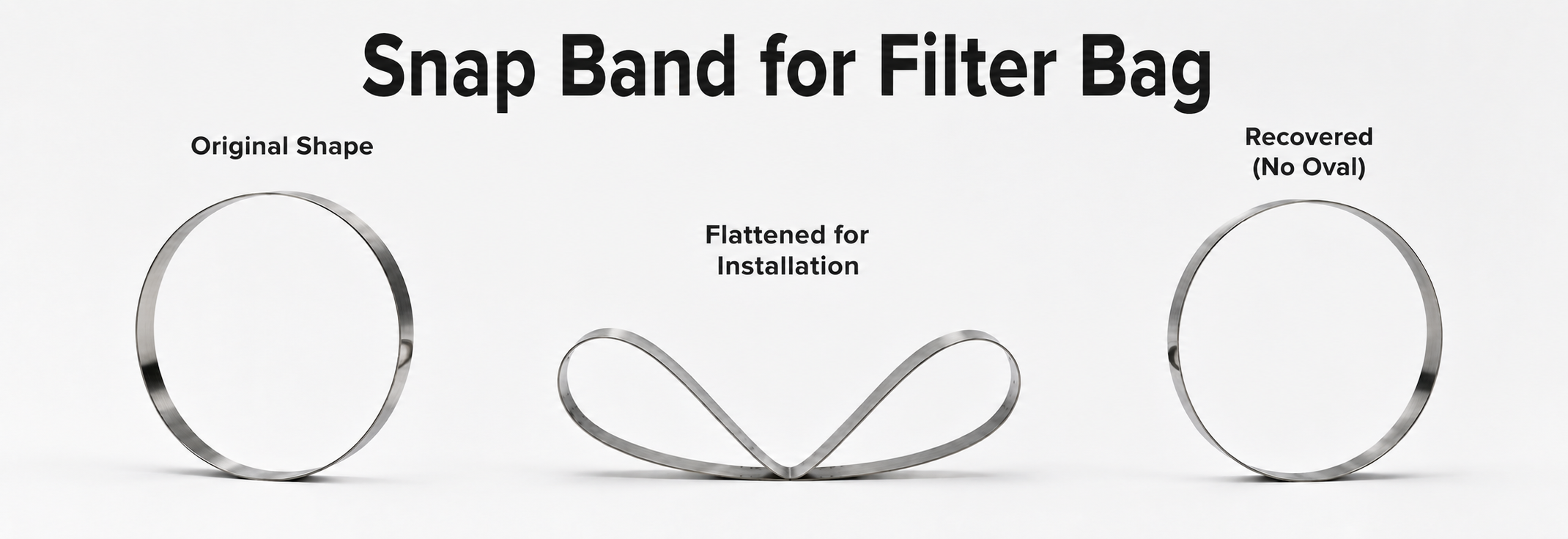

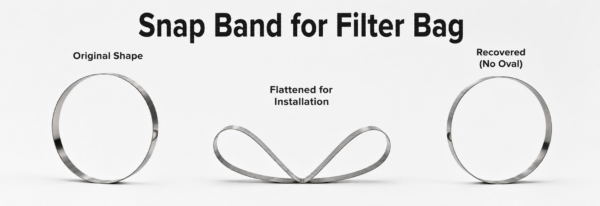

Our filter bag snap bands are manufactured from high-elasticity stainless steel strip with a Vickers hardness of approximately 600 HV, combining excellent toughness with reliable spring-back performance. Even when completely flattened during installation, the snap band quickly returns to a regular circular shape without permanent deformation, ovality, or localized warping, ensuring uniform contact with the tube-sheet hole.

For demanding applications—especially projects requiring a 2–3-year filter bag warranty—the snap band must maintain stable clamping force under continuous vibration, temperature fluctuations, and negative pressure. Its excellent elastic recovery and long-term resistance to deformation make it a preferred choice for high-temperature filter bags, helping reduce the risk of bag loosening, sealing failure, and dust leakage.

For long-term performance, the snap band must achieve the correct balance of elasticity, strength, and toughness:

• If the band is too soft, it may crease easily and lose its springback.
• If the band is too hard or brittle, it may crack during repeated flattening and installation.

A Qualified Snap Band Should:

• Withstand repeated flattening during installation without cracking
• Recover to a uniform circular shape without permanent oval deformation
• Maintain stable radial clamping force against the tube-sheet hole
• Resist deformation under vibration, thermal cycling, and repeated pulse cleaning
• Help prevent sealing gaps and dust bypass leakage

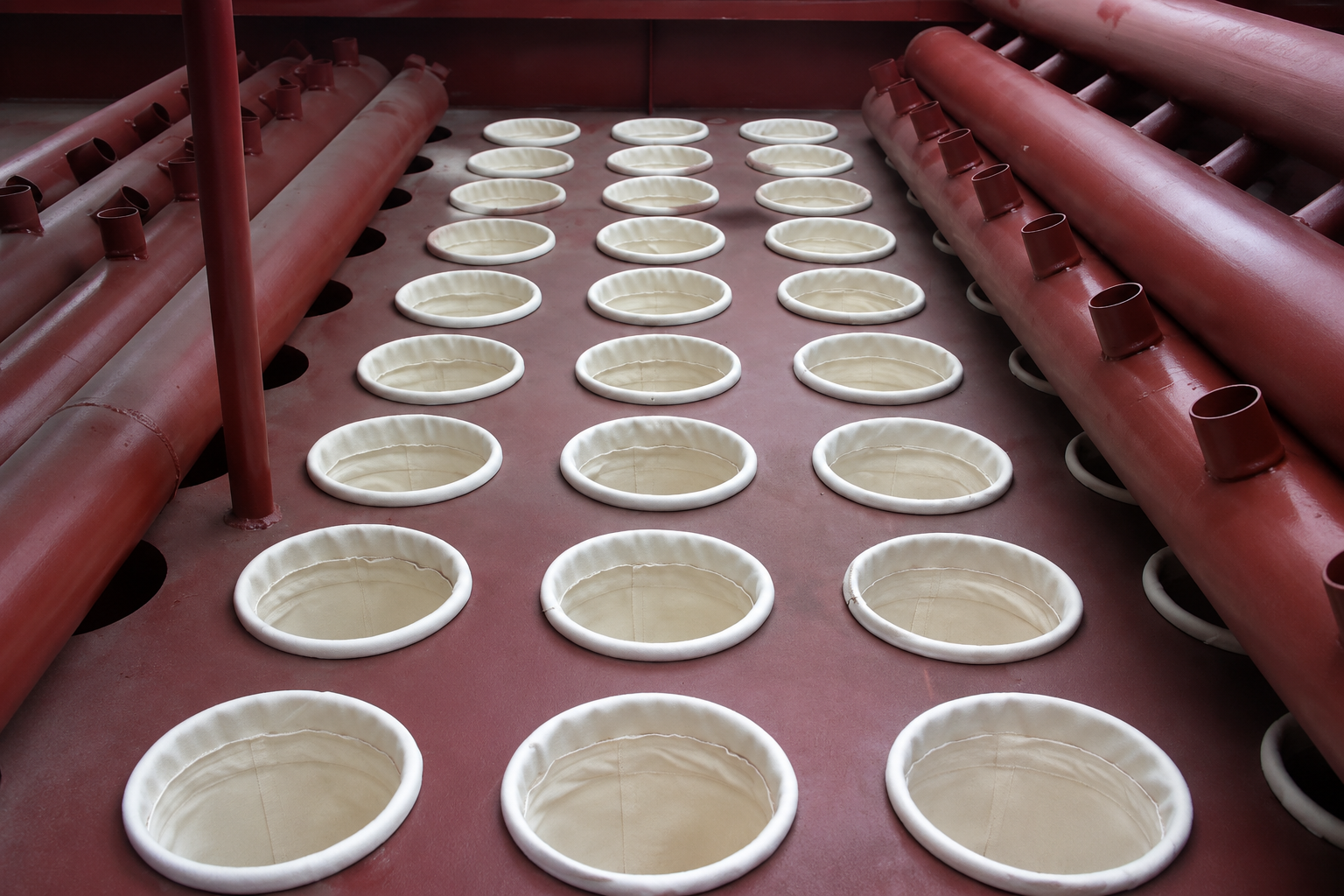

Reliable Tube-Sheet Sealing
High elasticity and toughness allow the snap band to recover quickly after being flattened during installation, with minimal permanent deformation. Once installed in the tube-sheet hole, it maintains stable radial clamping force and close contact, helping prevent gaps, bag slippage, and dust bypass leakage.

Stainless Steel Snap Bands: Material Selection Guidelines

• Select SUS301 stainless steel with stable elastic recovery, rather than evaluating quality based solely on high hardness.
• Ensure properly controlled cold working and work-hardening to achieve high elasticity without causing brittleness.
• The strip must pass a 180-degree bending test without cracking or breaking.
• Control the width and thickness tolerances to ensure consistent elasticity, dimensional stability and sealing performance.
• Ensure smooth strip edges without burrs, notches or microcracks, as edge defects can cause premature cracking during forming and installation.

Product Overview

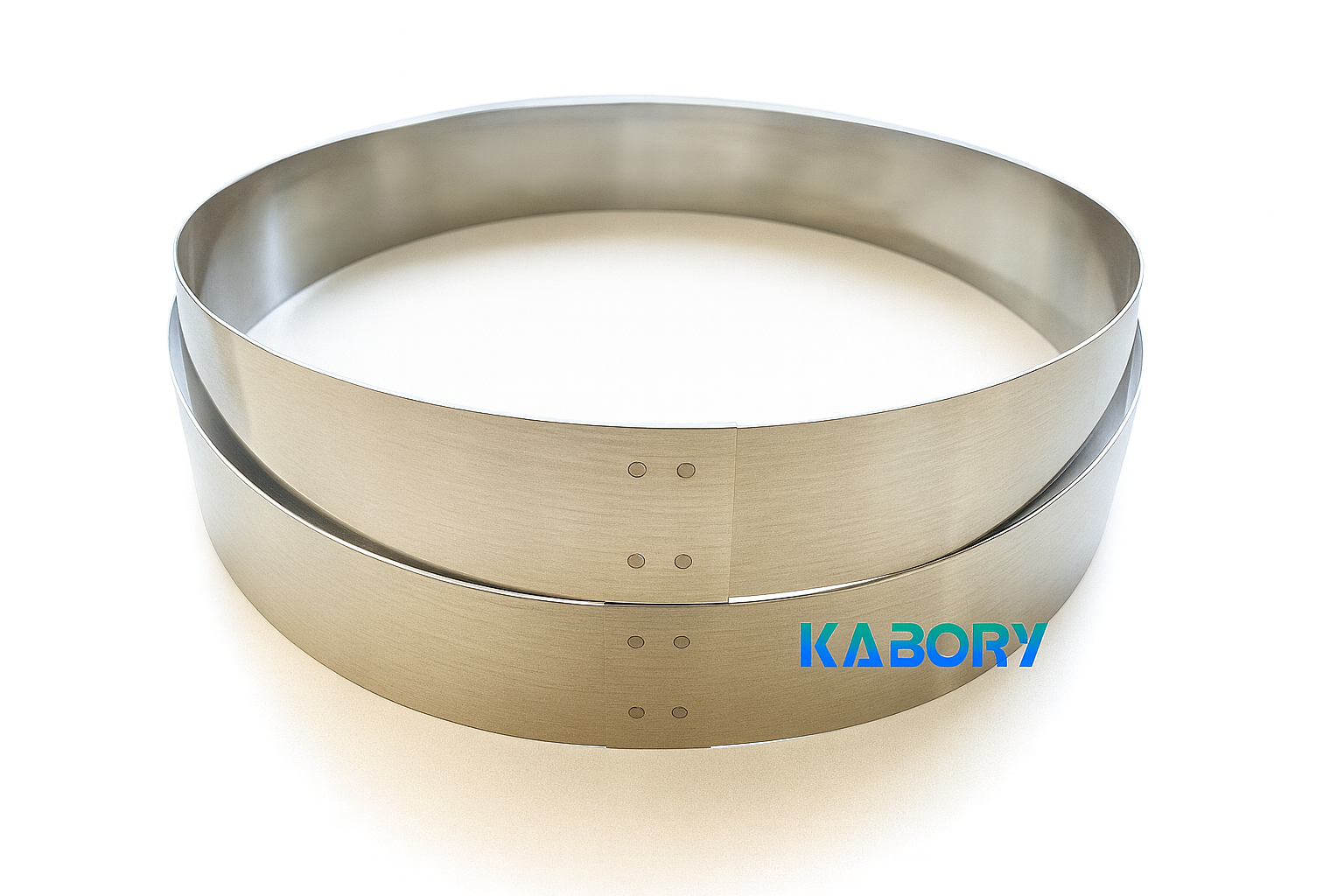

KABORY stainless steel snap bands are engineered for high-performance filter bag systems, providing long-term elasticity, reliable clamping force, and stable sealing performance.

Each coil is precision-slitted and bright-annealed to ensure:

• Smooth edges

• Uniform tension

• Consistent springback

• No flattening or oval deformation during repeated installation cycles

Available Material Options

Material	Key Feature	Suitable Applications
SUS301	High elasticity & strong clamping force	Standard and high-vibration dust collectors
SUS316L	Superior corrosion resistance	Wet FGD, waste-to-energy, chemical plants, and high-humidity or corrosive systems

KABORY snap bands integrate seamlessly with automatic welding and riveting systems, ensuring:

• Stable feeding

• Accurate alignment

• Continuous production

• Reduced machine downtime and production waste

Fiberglass Filter Bags & High-Temperature Filter Bags in Corrosive Environments

Fiberglass filter bags are prone to edge wear and tearing.

For these demanding applications, SUS316L snap bands are the preferred choice:

• Outstanding corrosion resistance against acid gases and moisture-laden environments

• Reliable sealing under high heat and vibration

• Polished bright-annealed finish to minimize abrasion

By contrast, SUS301 offers superior elasticity and strong springback, making it suitable for most standard dust collection applications. However, in wet FGD, chemical processing, waste-to-energy, and other high-humidity or corrosive environments, SUS301 may be more susceptible to corrosion, which can gradually affect its clamping and sealing performance.

For these demanding conditions, KABORY offers engineered SUS316L snap bands, combining improved corrosion resistance with controlled hardness and reliable elastic recovery to support long-term tube-sheet sealing performance.

 Key Features

Feature	Description
Durability	High strength, optimized hardness, and long service life
Tight Sealing	Strong clamping force ensures a leak-free fit
Precision Fit	Stable under pulsing & vibration
Size Options	Width: 10–40 mm
Smooth Surface	Safe for fiberglass, PTFE, and laminated media
Automation-Ready	Compatible with high-speed riveting & welding, including KABORY Automatic Snap Band Welding Machine

⚠️ Automation Compatibility Matters

Most steel band suppliers overlook a critical factor: flatness and consistency across the roll.

Even minor deviations such as:

• ⚠️ Wave distortion or edge curling
• ⚠️ Thickness variation
• ⚠️ Burrs or slitting defects
  can result in:

⚠️ Misaligned feeding or jammed rollers
⚠️ Welding or riveting failures
⚠️ Mold seizure or tooling breakdowns
⚠️ Increased downtime and maintenance cost

A snap band may seem insignificant, but poor strip quality can halt an entire production line or compromise bag sealing during pulse-jet cleaning.

High springback also mitigates permanent set from repeated assembly, improving yield and consistency on automated riveting/welding lines.

📌 Case Study: The Real Cost of Poor-Quality Snap Bands

At first glance, a snap band may seem like a small, inexpensive component in the overall filter bag system. But when quality is compromised, the consequences are significant:

• Leakage & Dust Emissions

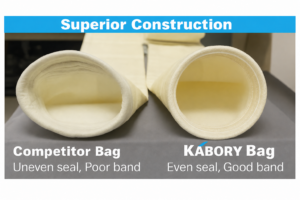

  Inferior snap bands often suffer from poor flatness, inconsistent hardness, or rough edges. This leads to incomplete sealing against the tube sheet, causing dust to leak into clean air chambers.

• Bag Slippage & Unexpected Drop-Off
  Weak bands lose their clamping force under vibration or pulse-jet cleaning. In extreme cases, entire filter bags can loosen or fall from the tube sheet — leading to unplanned shutdowns and severe safety risks.

• Accelerated Filter Bag Wear
  Snap bands with burrs or uneven surfaces can cut into the filter bag cuff, shortening the service life of bags that are otherwise designed to last years.

• Hidden Costs Outweigh “Savings”
  While low-cost snap bands may save a few dollars per coil, the cost of replacing prematurely failed bags — or worse, dealing with production downtime and environmental penalties — far outweighs the initial “savings.”

💡 When compared with the cost of filter bags themselves (often hundreds of dollars per bag) or the operational losses from unscheduled maintenance, investing in precision-engineered stainless steel snap bands is the only rational choice.

We maintain tight tolerances on material flatness, edge finish, and mechanical properties to ensure compatibility with automated production lines.

Beyond Filter Bags – Extended Applications

KABORY stainless steel strips are widely used for:

• Industrial sealing rings and clamps

• Pneumatic conveying couplings

• Flexible duct connectors (e.g., BFM-style systems)

• Elastic fastening components in chemical, power, and process industries

Wherever resilience, clamping strength, and corrosion resistance matter, KABORY stainless steel provides proven reliability.

 Technical Specifications

Parameter	SUS301	SUS316L
Width (mm)	20 / 25 / 30 / 35 / 40	20 / 25 / 30 / 35 / 40
Thickness (mm)	0.40 – 0.80	0.40 – 0.80
Hardness(HV)	590-600	540-560
Surface	Bright-Annealed	Bright-Annealed
Key Property	High Elasticity & Strength	Corrosion Resistance
Recommended Application	Dust Collection	FGD / Incineration / Chemical Plants

Optimized hardness and elasticity deliver superior springback and sealing stability across both grades.

Applications

• Filter bag snap band closures for industrial dust collectors

• Cement, power generation, and steel industries

• High-corrosion zones: FGD, incineration, chemical plants

• PTFE and fiberglass filter bag support

• Sealing rings, clamps, fastening strips, elastic parts

 Inventory & Delivery

• Common widths and hardness grades in stock
• 3+ tons daily shipment capacity
• Custom lengths, packaging, and coil handling available

Snap Band Selection Tips

1. Corrosion Resistance:
   Use SUS316L for acidic, alkaline, chloride-rich, or other corrosive operating conditions.
2. Machine Compatibility:
   Confirm that the strip material, hardness, thickness, and surface condition are compatible with your snap band riveting machine or Automatic Snap Band Welding Machine.
3. Bag & Groove Fit:
   Select the correct band width, thickness, and diameter according to the filter bag size and tubesheet groove dimensions to ensure reliable sealing and installation.
4. Elastic Recovery:
   A high-quality snap band should withstand repeated bending and flattening without cracking or permanent deformation, and should return to a stable circular shape after release.
5. Material Consistency:
   Stable chemical composition, controlled hardness, dimensional tolerance, and consistent spring performance are more important than hardness alone.
6. Supplier Experience:
   Choose a supplier who understands both stainless steel spring performance and automated filter bag production, rather than metallurgy alone.

📩 Request Samples or Technical Support

Contact us to receive test samples, tolerance specs, or full technical datasheets.
Let KABORY help your team boost filter bag assembly efficiency and reliability.
