Rivet-Free Metal Structured Packing Welding Machine

Next-Generation MFDC Fusion Welding for Metal Structured Packing

🔍 If your structured packing is still riveted, the joint is your weakest point.
Not conceptually — physically.

Send us your packing model (125–700) and material grade.
We provide welded test samples, inspection photos, and lifecycle performance data for direct, side-by-side evaluation.

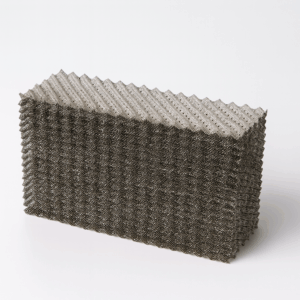

 Advantages of MFDC Structured Packing Welding

🔶 Rivet-Free Connection
No holes, no rivets, no crevice or edge-corrosion initiation points.

🔶 ≈ 2-Second Weld Cycle
Automated positioning + MFDC output delivers highly repeatable joints.

🔶 ≈ 30% Higher Structural Strength
Metallurgical fusion resists vibration, thermal cycling, and long-term fatigue.

🔶 Full Process Traceability
Current / pressure / time recorded automatically for every weld.

🔶 Ultra-Clean Assembly
No punching chips, no rivet debris, no contamination risk inside the column.

Why We Re-Engineered the Joint

Development Background of Rivet-Free Structured Packing Welding

For decades, metal structured packing modules have been assembled using punched holes and rivets. While practical in early designs, long-term operation revealed inherent weaknesses — especially under:

• High temperature

• Solvent-rich chemical environments

• Thermal cycling and vibration

• Pulse or mechanical cleaning

Observed failure mechanisms in riveted structures:

• Corrosion initiating at hole edges and crevices

• Rivet loosening and geometry distortion over time

• Stress concentration reducing fatigue life

• Metal debris contaminating columns

• Quality variability driven by manual alignment and operator skill

Modern separation systems demand longer runtimes, higher reliability, and fewer shutdowns. Incremental improvements to riveting are no longer sufficient.

👉 MFDC Fusion Welding was developed to eliminate these failure mechanisms at their source — not to patch them.

Why Riveted Metal Structured Packing Is Reaching Its Limits

 Limitations of Riveted Structured Packing

• ❌ Holes create stress risers and corrosion origins

• ❌ Rivet heads can loosen and distort module geometry

• ❌ Manual alignment → variable quality and rework

• ❌ Debris and burrs → cleanliness risks in columns

MFDC Fusion Welding – What Changes in Structured Packing

• ✅ Metallurgical bond (no holes, no mechanical fasteners)

• ✅ Smooth flow surface, no protrusions or gaps

• ✅ Higher fatigue & flexural strength (~30% typical improvement)

• ✅ Automated, repeatable cycle with digital records

What MFDC Fusion Welding Actually Does

MFDC (Medium-Frequency Direct Current) resistance welding fuses corrugated metal sheets into a continuous metallurgical joint, without melting through or deforming the structure.

Key structural outcomes:

• No holes → No corrosion initiation

• No rivets → No loosening or geometry shift

• Smooth surface → Improved wetting and flow uniformity

• High stability under thermal cycling and vibration

One-Stop Solution Beyond a Single Welding Machine

The Rivet-Free Metal Structured Packing Welding Machine presented on this page represents the core joining technology for next-generation structured packing manufacturing.

For customers seeking not only a machine, but a reliable and scalable manufacturing solution, we also provide complete system-level support, including structured packing design, process integration, and turnkey production line delivery.

By working directly with your packing model, material grade, and target capacity, we help transform rivet-free welding from a single process step into a fully engineered production solution.

👉 To learn more about our Rivet-Free Structured Packing Production Line, offering a true one-stop manufacturing system, please visit:

Rivet-Free Structured Packing Production Line

How the Rivet-Free Structured Packing Welding Machine Works

1️⃣ Stacking
Corrugated sheets placed one-up / one-down in the fixture.

2️⃣ Servo Alignment
Automated positioning locates weld points to ±0.5 mm accuracy.

3️⃣ MFDC Fusion
Precisely controlled current and pressure create solid-state metallurgical bonding — no burn-through, no distortion.

4️⃣ Integrated Joint
Sheets merge into one continuous structural body.

5️⃣ Data Traceability
Current, pressure, time, and weld count automatically logged for QA and audits.

MFDC Fusion Welding in Action – Rivet-Free Metal Structured Packing Assembly



Welding Performance & Structural Integrity Comparison

Item	Riveted Connection	MFDC Fusion Welding
Joint Type	Hole + Rivet (Mechanical)	Metallurgical Fusion (No Holes)
Corrosion Risk	✔ High (starts at hole edges)	✘ None (no crevices / no gap)
Structural Strength	Normal, loosens over time	≈30% Higher, no loosening
Cleanliness	Metal debris from punching	No debris, clean assembly
Cycle Time	10–15 min / module (manual)	≈1 sec / weld (automatic)
Traceability	None	Current / Pressure / Time recorded

Technical Specifications – Metal Structured Packing Welding Machine

Item	Specification
Effective Welding Envelope	2000 × 450 × 200 mm
Welding Process	MFDC Metallurgical Fusion Resistance Welding
Weld Cycle Time	≈1 second per weld
Positioning Accuracy	±0.5 mm (servo-controlled)
Power Rating	45 kVA
Input Voltage	380V / 50Hz / 3-Phase
Air Supply	≥ 0.6 MPa
Electrode Cooling	Water-cooled Tungsten-Copper (WCu)
Data Logging	Current / Pressure / Time / Weld Count (Fully Traceable)
Machine Dimensions	4300 × 1550 × 2100 mm

Metal Structured Packing Welding Performance Validation

• ✅ No corrosion marks in 6–24-month runtime inspections

• ✅ No weld-fatigue failures under pulse cleaning & thermal cycling

• ✅ Stable geometry after prolonged service

• ✅ Zero debris → No contamination risk in columns

Applications & Industry Use Cases for Metal Structured Packing Welding

• Petrochemical distillation columns

• Absorption & desorption towers

• Refining & solvent recovery systems

• Desulfurization / decarbonization units

• High-purity fine chemical and pharmaceutical separation

Request Samples / Technical Demonstration

Request Samples / Technical Demonstration

We provide:

✔ Welded structured packing sample pieces
✔ Cross-sectional weld analysis
✔ Strength and fatigue comparison data
✔ Online technical review session

➡️ Send your packing model (125–700) and material grade.
We configure the weld pattern accordingly and let the data speak.
