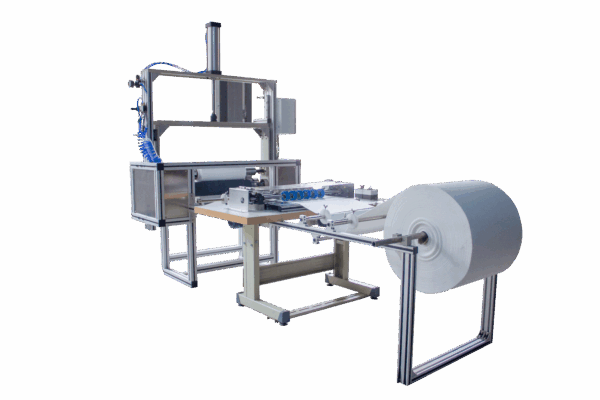

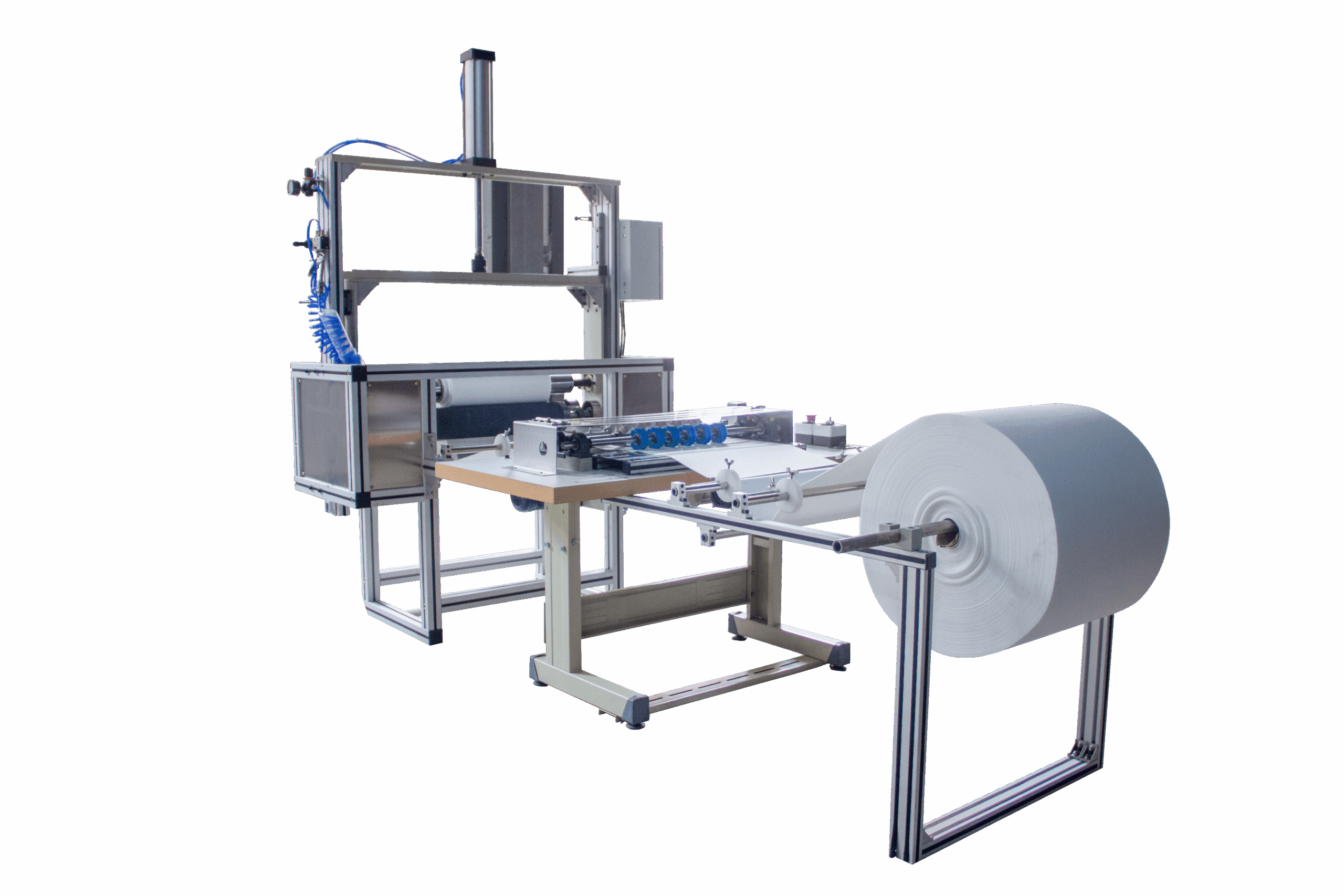

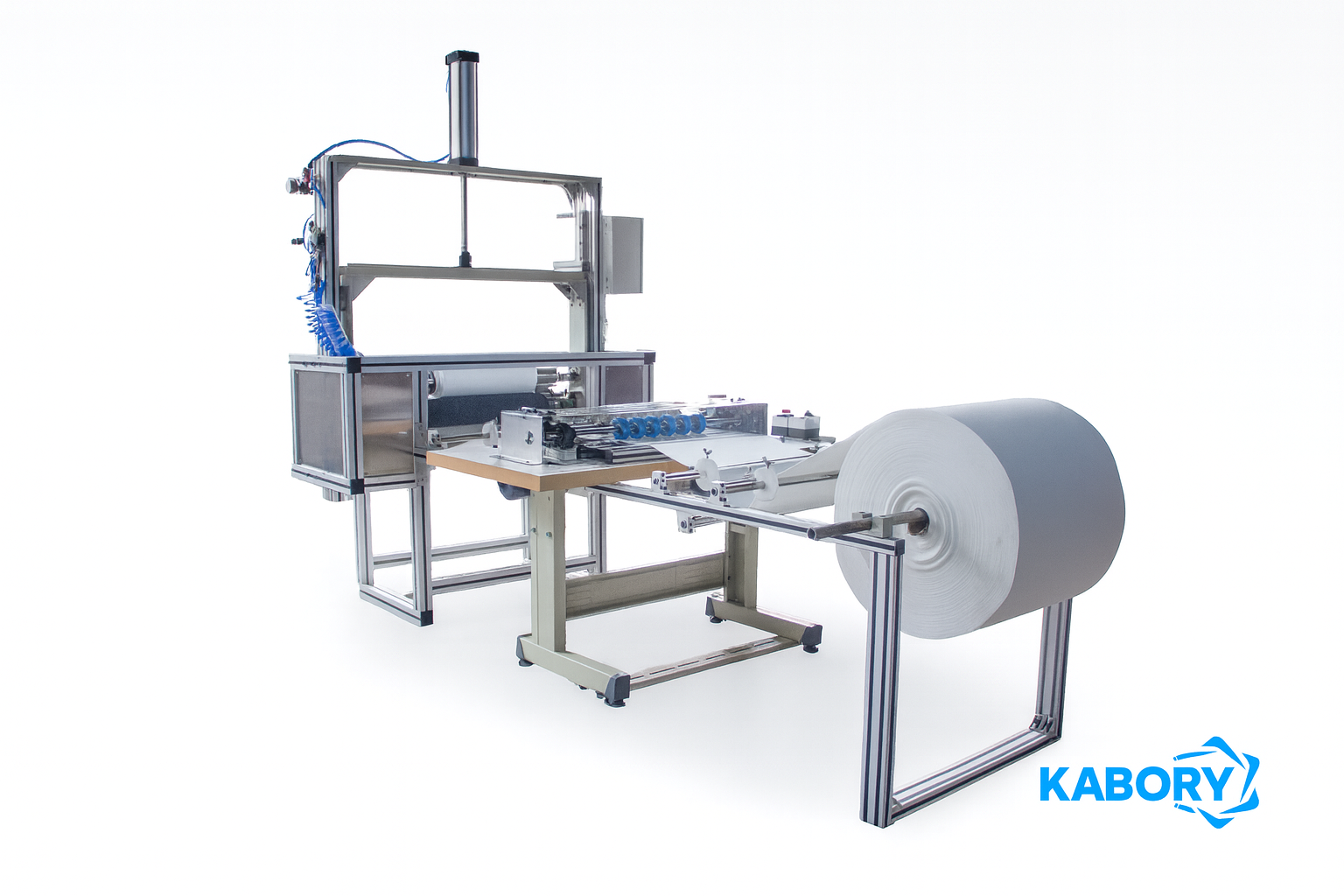

Automatic Needle Felt Strip Slitting Machine
Automatic Needle Felt Strip Slitting Machine designed to convert wide rolls of needle-punched felt into Bead/Profile Tape, Reinforcement Strips, and Seam Binding Strips.
Performs automatic feeding → multi-blade slitting → air-shaft rewinding, ensuring consistent strip width, neat roll output, and one-operator stable production.
Description
Automatic Needle Felt Strip Slitting Machine
Automated Slitting System for Reinforcement, Bead/Profile Tape, and Seam Binding Strips
🟠 A dedicated solution for high-efficiency strip preparation in industrial filter bag manufacturing.
This machine converts wide rolls of needle-punched felt into Bead/Profile Tape, Reinforcement Strips, and Seam Binding Strips with stable width accuracy, clean edges, and neatly wound output rolls, ensuring consistent downstream sewing and snap-band assembly processes.
Why This Machine Matters
⚠️ Traditional Method
• Requires 2 operators (one feeding, one collecting strips)
• No rewinding system → strips exit loose, tangled, scattered across workspace
• Next sewing step requires manual feeding, causing low efficiency and quality variation
• Strip width varies between operators and shifts → unstable seam quality
• Waste increases significantly when cutting Aramid / PPS / PTFE technical felts
🟠 Upgraded With This Machine
Manual roll loading → Automatic feeding → Automatic multi-blade slitting → Air-shaft automatic rewinding
✅ Only 1 operator required
✅ Strips come out neatly wound, ready for sewing or snap-band forming
✅ Consistent and repeatable strip dimensions across shifts
✅ Reduced waste and improved utilization of high-value materials
Key Features
🟠 Automatic Feeding System
Maintains uniform tension and alignment to ensure width accuracy.
🟠 Multi-Blade Synchronous Slitting
Cuts multiple strips simultaneously for high throughput.
🟠 Air-Shaft Automatic Rewinding
Produces compact, clean rolls that are easy to change and transport.
🟠 Adjustable Strip Width (25–90 mm)
Supports production of Bead/Profile Tape, Reinforcement Strips, and Seam Binding Strips from a single setup.
🟠 Tension & Alignment Control
Prevents stretching, fraying, or distortion of sensitive technical felts.
🟠 Heavy-Duty Industrial Frame
Designed for continuous industrial operation with low maintenance.
Benefits Comparison
| ⚠️ Traditional Process | 🟠 With This Machine |
|---|---|
| Requires 2 operators | ✅ One operator is enough |
| Strips exit loose and disorganized | ✅ Strips exit neatly rolled |
| Strip width varies by operator or shift | ✅ Stable and repeatable strip width |
| High trimming loss and waste | ✅ Improved material utilization |
Technical Specifications
| Parameter | Specification |
|---|---|
| Strip Width Range | 25–90 mm adjustable (full range) |
| Processing Speed | 0–30 m/min adjustable |
| Maximum Roll Width | 500–800 mm (customizable) |
| Rewinding Method | Air-shaft automatic rewinding |
| Applicable Materials | Needle felt, Aramid, PPS, PTFE-laminated felt, fiberglass felt |
| Power Supply | 220V, 50/60Hz |

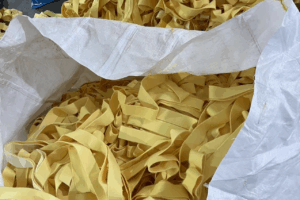

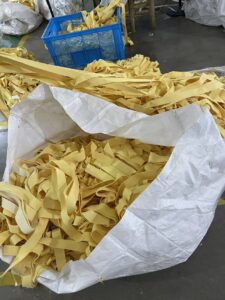

Applications
• Bead / Profile Tape for Snap Band region
• Reinforcement Strips for Star bag body support and durability
• Seam Binding / Edge Binding Strips for sewing joints
• Structural stabilization strips for bag shape retention
Why Choose Us
🟠 Designed specifically for filter bag manufacturing workflows
🟠 Proven durability in continuous industrial operation
🟠 On-site and remote installation + training support
🟠 Long-term spare parts supply and service assurance
Contact Us
Please provide:
• Material roll width
• Target strip width and number of strips per roll
• Required daily / shift production capacity
We will configure the blade layout and rewinding setup for your requirements.
