Meta-Aramid Pleated Felt Filter Media for High-Temperature Cartridge Filters

Meta-Aramid Pleated Felt Filter Media for High-Temperature Cartridge Filters

Meta-aramid pleated needle felt filter media engineered for high-temperature cartridge filtration, offering thermal stability, high airflow capacity, and reliable antistatic performance.

Product Overview

Meta-aramid pleated felt filter media is designed for high-temperature cartridge dust collection systems that require enhanced thermal resistance, dimensional stability, and reliable performance under heavy dust loading.

Manufactured from high-quality meta-aramid (aromatic polyamide) short-fiber needle felt, this media provides excellent heat resistance and mechanical stability, making it suitable for continuous operation in demanding industrial environments.

Through high-temperature stiffening and setting treatment, the needle felt achieves improved rigidity and dimensional stability. This enables consistent pleat forming and long-term structural integrity during pleated filter cartridge manufacturing and operation.

The media is widely applied in cement plants, steel production, metallurgical processes, and other high-dust, high-temperature industries, where higher airflow capacity and antistatic performance are required.

｜Key Advantages

｜Higher Continuous Temperature Capability

Designed for continuous operation up to 200 °C, with short-term temperature peaks up to 220 °C, meeting the requirements of high-temperature cartridge filtration systems.

｜High Air Permeability

Provides higher airflow capacity than PPS-based media, making it suitable for applications requiring lower pressure drop and stable system operation.

｜Antistatic Performance of Meta-Aramid Pleated Felt Filter Media

Carbon impregnation treatment effectively reduces electrostatic charge accumulation in dry, high-dust environments, supporting safe and stable long-term operation.

｜Thermal and Mechanical Stability

The meta-aramid fiber structure maintains strength and dimensional stability under prolonged exposure to elevated temperatures and repeated cleaning cycles.

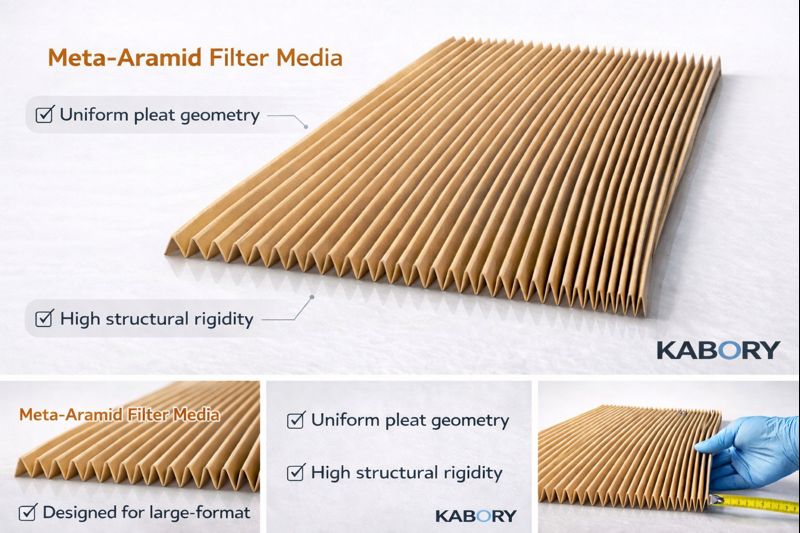

｜Optimized for Cartridge Filter Manufacturing

Controlled thickness and stiffness support reliable pleating, cartridge assembly, and long service life in industrial filtration systems.

Technical Specifications

Meta-Aramid Needle Felt Pleated Filter Media

Item	Specification
Basic Material	Meta-aramid short fiber needle felt
Weight	340 g/m²
Thickness	0.8 mm
Air Permeability①	200 L/m²·s
Filtration Precision②	5 μm
Tensile Strength (Warp / Weft)	1000 N / 5 cm · 1000 N / 5 cm
Continuous Temperature	≤200 °C
Instantaneous Temperature	≤220 °C
Afterfinish	High-temperature stiffening, carbon impregnation (antistatic)
MERV Grade③	MERV 11 / F6
Base Cloth	With base cloth (plain media)

Surface Treatment Options

• Carbon Impregnation (Antistatic)
  Reduces electrostatic charge accumulation in dry, high-dust environments.
• Water & Oil Repellent Treatment
  Improves operational stability under humid or mixed gas conditions.
• Flame-Retardant Treatment
  Available upon request for safety-critical or regulated applications.

Field-Proven Performance / Market Validation

This meta-aramid pleated filter media has been widely applied in industrial dust collection systems in China for many years, particularly in cement and steel industries where high dust loading and elevated operating temperatures are common.

Long-term field operation has demonstrated:

• Stable pleat geometry under sustained high-temperature conditions
• Consistent airflow performance in high-dust environments
• Reliable antistatic behavior during continuous operation

This market experience confirms the material as a mature and reliable solution for high-temperature cartridge filtration.

Typical Applications

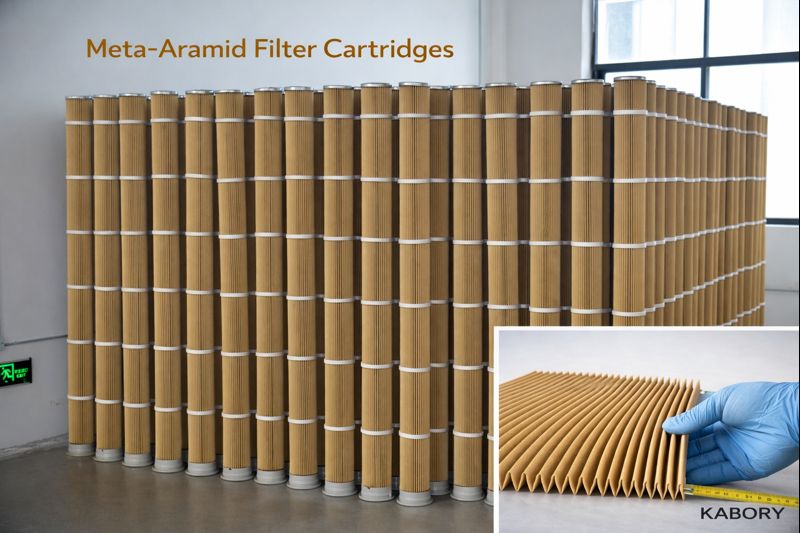

• High-temperature pleated cartridge dust collectors
• Cement production and clinker handling
• Steel and metallurgical dust collection
• High-dust industrial processes requiring antistatic performance

Technical Notes

① Air permeability measured at ΔP = 200 Pa.
② Filtration precision refers to particle capture performance prior to dust cake formation; operational efficiency improves after dust layer stabilization.
③ MERV grade tested according to ASHRAE 52.2 (USA) or EN 779 (Europe).

★ Technical data are provided for reference only and may vary with test conditions and production batches. Specifications are subject to change without prior notice.

Why Choose Meta-Aramid Pleated Felt Filter Media

Compared with PPS-based media, meta-aramid pleated felt filter media offers higher temperature resistance and higher air permeability, making it well suited for applications where airflow capacity, antistatic performance, and thermal stability are critical.

It is a proven filtration solution for cement, steel, and other heavy industrial dust collection systems operating under demanding conditions.
