Meta-Aramid Filter Cartridges

Meta-Aramid Filter Cartridges

Engineered for High-Temperature Industrial Filtration

China’s Only Manufacturer Capable of Large-Scale Production of Meta-Aramid Filter Cartridges

In industrial dust collection, meta-aramid filter media is widely recognized for its excellent resistance to high temperature and chemically aggressive environments.
It is commonly specified for applications where polyester media rapidly degrades and where long-term thermal stability is required.

However, transforming meta-aramid filter media into a reliable pleated filter cartridge is not a simple material substitution — it is a structural and process engineering challenge.

Due to its inherent fiber characteristics, meta-aramid presents unique difficulties when used in cartridge-style filtration, particularly under continuous pulse-jet cleaning and long service cycles.

Why Meta-Aramid Is Difficult to Industrialize as a Pleated Filter Cartridge

Meta-aramid fibers are inherently flexible, resilient, and heat-stable.
While these properties are beneficial for high-temperature environments, they create significant challenges when meta-aramid is formed into pleated cartridge structures:

• Low structural rigidity, making pleats prone to micro-shifting
• Progressive pleat deformation under repeated pulse-jet cleaning
• Increased pleat-to-pleat friction during long service cycles
• High stress concentration at the bottom and end-cap interfaces

As a result, many so-called meta-aramid cartridges available on the market are limited to laboratory samples, pilot batches, or short service life products, rather than true industrial solutions.

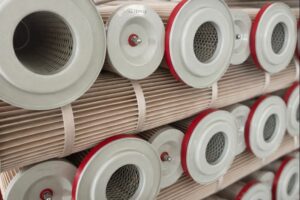

Locked Bottom Design of Meta-Aramid Filter Cartridges — Key to Long-Term Reliability

To overcome these limitations, KABORY has developed and industrialized a special locked bottom process specifically for Meta-Aramid Filter Cartridges.

Unlike conventional glued or press-fit designs, the locked bottom structure:

• Mechanically locks the pleated meta-aramid media to the bottom end cap
• Prevents media pull-out under pulse-jet shock
• Reduces stress concentration caused by thermal cycling
• Maintains sealing integrity over long-term operation

For meta-aramid cartridges, this bottom structure is not optional — it is essential for industrial reliability.

Why Large-Scale Production Is the Real Barrier

Many manufacturers can produce a small number of meta-aramid cartridges for testing.
Large-scale industrial production is a completely different challenge.

Stable mass production requires:

• Repeatable pleat geometry and spacing
• Consistent bottom locking accuracy
• Tight control of dimensional tolerances
• Batch-to-batch performance consistency

Without these capabilities, products remain at the sample or trial stage.

Meta-Aramid vs PPS Filter Cartridges — Engineering Selection Guide

Selecting the correct filter cartridge material is not about choosing the “best” media,
but about choosing the most suitable material for the real operating conditions.

Material Selection Comparison for Industrial Dust Collection

Selection Criteria	Meta-Aramid Filter Cartridges	PPS Filter Cartridges
Typical Operating Temperature	High temperature, continuous operation	Medium–high temperature
Chemical Resistance	Good resistance to acidic & alkaline environments	Excellent acid resistance, good alkali resistance
Mechanical Rigidity	Medium (requires structural reinforcement)	Higher inherent rigidity
Pulse-Jet Cleaning Stress	High — requires engineered structure	Medium–high
Structural Design Sensitivity	Very high (pleat & bottom design critical)	Medium
Risk Without Proper Design	Pleat shifting, media pull-out, end-cap failure	Thermal aging under temperature fluctuation
Service Life Stability	High, when properly engineered	Stable in sulfur-rich flue gas
Cost Efficiency (Lifecycle)	Balanced for long-term high-temperature use	Very cost-effective in many boiler systems
Typical Applications	High-temp dust with chemical exposure & long cycles	Boilers, incinerators, cement kilns

When Meta-Aramid Filter Cartridges Are the Right Choice

Meta-Aramid Filter Cartridges are typically selected when standard PPS cartridges approach their long-term performance limits, such as:

• Continuous high-temperature dust collection
• Chemically aggressive flue gas with mixed acidic and alkaline components
• Pulse-jet cleaning systems requiring long service intervals
• Applications where structural reliability over time matters more than short-term cost

In these conditions, the key challenge is not filtration efficiency, but whether the cartridge structure can remain stable over long service cycles.

Why Structural Design Matters More for Meta-Aramid

Unlike PPS filter media, meta-aramid fibers are inherently more flexible.
This makes pleat geometry stability and bottom-end construction especially critical.

Without proper engineering:

• Pleats may gradually shift under pulse-jet cleaning
• Stress concentrates at the bottom interface
• Long-term sealing reliability becomes unpredictable

For this reason, Meta-Aramid Filter Cartridges cannot be treated as a simple PPS replacement.

KABORY Engineering Advantage in Meta-Aramid Cartridge Design

KABORY’s Meta-Aramid Filter Cartridges are engineered specifically to address these risks through:

• Optimized pleat geometry for long-term stability
• A special locked bottom process to prevent media pull-out
• Controlled, repeatable manufacturing for batch consistency

This is what allows Meta-Aramid cartridges to move from laboratory feasibility to true industrial-scale operation.

When PPS reaches its limits, Meta-Aramid becomes the engineered solution —
not because of the media alone, but because of the structure behind it.



KABORY — The Only Large-Scale Manufactured Meta-Aramid Filter Cartridges Capability in China

KABORY is currently the only manufacturer in China capable of stable, large-scale production of Meta-Aramid Filter Cartridges.

This capability is not defined by the availability of meta-aramid media, but by:

• Industrialized pleating and forming processes
• A proven locked bottom construction
• Repeatable quality control across production batches
• Long-term supply stability for engineering projects

Our focus is not prototype development, but continuous, repeatable production for real industrial applications.

Designed for Real Industrial Conditions

KABORY Meta-Aramid Filter Cartridges are engineered for systems requiring:

• Continuous high-temperature dust collection
• Chemically aggressive flue gas environments
• Pulse-jet cleaning with long service intervals
• Stable pressure drop and predictable maintenance cycles

They are not experimental products, but mature industrial solutions designed for long-term operation.

FAQ – Meta-Aramid Filter Cartridges (Engineering Questions)

Q1: Why are Meta-Aramid filter cartridges more difficult to manufacture than PPS cartridges?

Meta-aramid fibers are inherently more flexible and resilient than PPS media.
While this improves thermal resistance, it also reduces structural rigidity in pleated cartridge designs.
Without proper pleat control and bottom-end reinforcement, cartridges may experience pleat shifting, media pull-out, or premature structural fatigue during long-term pulse-jet cleaning.

---

Q2: What is the main structural failure risk for Meta-Aramid filter cartridges?

The most common risk is instability at the bottom and end-cap interface, rather than media filtration failure.
Repeated pulse-jet cleaning and thermal cycling can concentrate stress at this interface, leading to sealing loss or media separation if the structure is not properly engineered.

---

Q3: What is the purpose of the special locked bottom process?

The special locked bottom process mechanically secures the pleated meta-aramid media to the bottom end cap.
Unlike conventional glued or press-fit designs, it distributes mechanical stress more evenly, prevents media pull-out, and improves long-term sealing reliability under pulse-jet cleaning and high-temperature operation.

---

Q4: Can Meta-Aramid filter cartridges directly replace PPS filter cartridges?

Not always.
Meta-Aramid filter cartridges are typically selected when PPS approaches its long-term performance limits, particularly under higher temperatures or chemically aggressive conditions.
However, Meta-Aramid cartridges require more precise structural engineering and should not be treated as simple drop-in replacements.

---

Q5: How does pulse-jet cleaning affect Meta-Aramid filter cartridges over time?

Pulse-jet cleaning subjects cartridges to repeated reverse airflow shocks.
If pleat geometry and bottom structure are not stabilized, this can cause gradual pleat deformation and uneven dust loading.
Proper pleat design and locked bottom construction are critical to maintaining long-term stability.

---

Q6: What defines “large-scale production” for Meta-Aramid filter cartridges?

Large-scale production means repeatable, batch-consistent manufacturing, not limited trial batches.
This includes consistent pleat spacing, stable bottom locking accuracy, dimensional control, and predictable performance across long-term supply cycles for industrial projects.

---

Q7: Are Meta-Aramid filter cartridges suitable for continuous high-temperature operation?

Yes—when properly engineered.
Meta-Aramid media provides excellent thermal stability, but long-term reliability depends on structural design, especially pleat stability and end-cap integrity.
Industrial-grade cartridges must be designed for continuous operation rather than short-term testing.

---

Q8: What industries typically benefit most from Meta-Aramid filter cartridges?

Meta-Aramid filter cartridges are commonly used in applications involving:

• Continuous high-temperature dust collection
• Chemically aggressive flue gas environments
• Pulse-jet cleaned systems with long service intervals
• Processes requiring stable pressure drop and predictable maintenance cycles

---

Q9: Why is manufacturing consistency critical for Meta-Aramid cartridges?

Because small variations in pleat geometry or bottom structure can significantly affect long-term performance.
Manufacturing consistency ensures that each cartridge behaves predictably under identical operating conditions, which is essential for engineering projects and long-term system stability.

---

Q10: How should Meta-Aramid filter cartridges be selected for a project?

Selection should be based on actual operating temperature, chemical exposure, pulse-jet cleaning intensity, and maintenance expectations, rather than media type alone.
Engineering evaluation and application-specific guidance are strongly recommended.

---

Contact Us

If you are evaluating Meta-Aramid Filter Cartridges for high-temperature or chemically aggressive dust collection, please share your operating conditions.
Sample cartridges, technical consultation, and application guidance are available to support proper material and structural selectio
