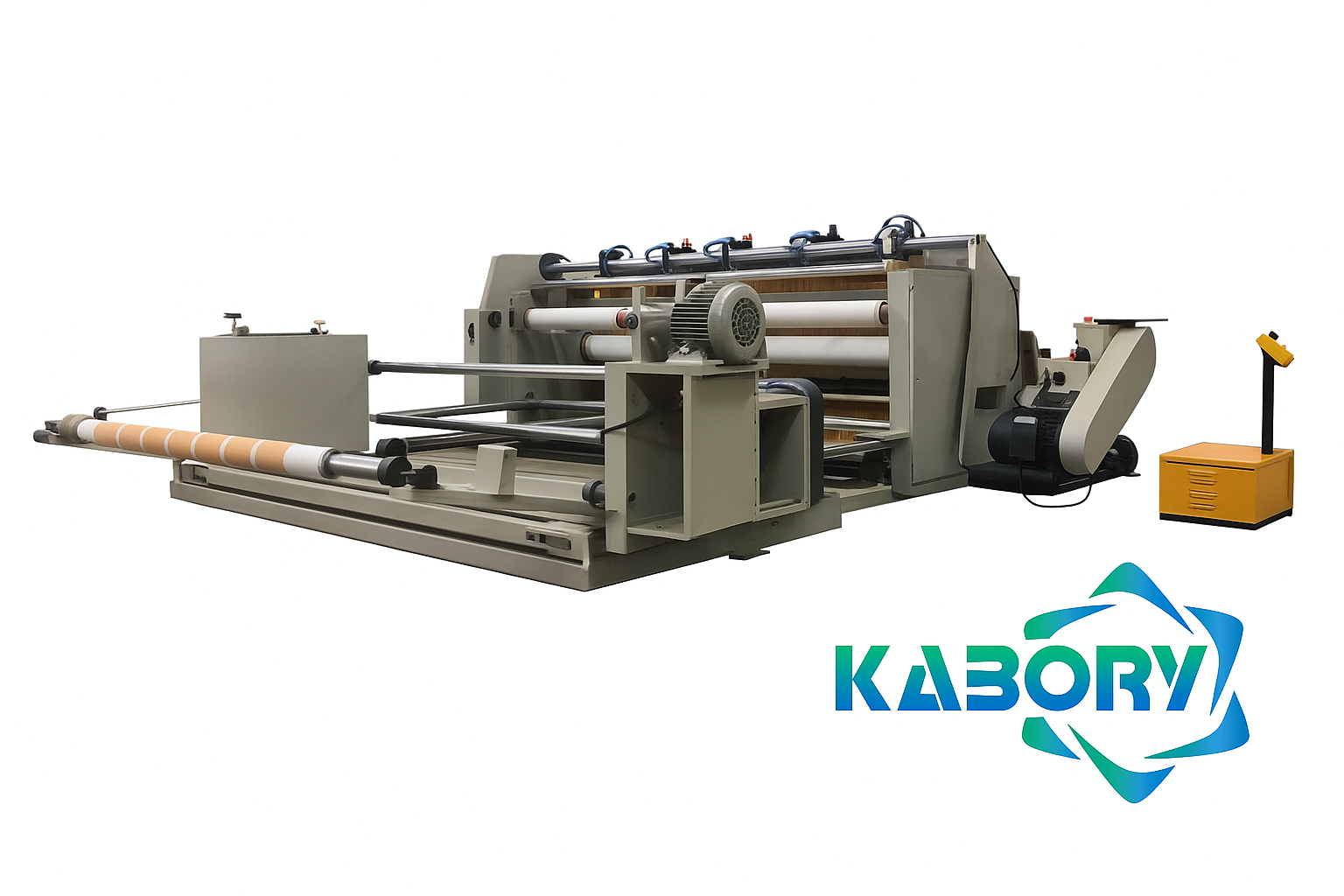

High-Precision Roll-to-Roll Slitting System for Large-Format Filter Materials

Precision Slitting Machine for Needle Felt and Fiberglass Media

Our slitting machine is engineered not only for needle felt but also specially optimized for fiberglass-based filter media — addressing the unique challenges of fraying, misalignment, and edge damage that occur during cutting.

By combining advanced tension control, real-time deviation correction, and specialized roller technology, the system delivers clean, consistent, and high-speed slitting results across a wide range of filtration materials.

Key Technology Advantages

✅ Advanced Tension Control System
Maintains stable tension throughout the entire slitting process, ensuring precise widths and preventing fiberglass edge distortion.

✅ Magnetic Powder Clutch (Dual-End)
Installed at both winding and unwinding ends, stabilizing material feed and rewinding uniformity.

✅ Hydraulic Auto Loading with High-Precision Deviation Correction (±200 mm)
Automatically lifts and aligns rolls during unwinding.
The deviation correction system tracks fabric movement in real-time and corrects within ±200 mm, keeping rolls perfectly centered. This minimizes edge waste, improves slit accuracy, and reduces operator intervention.

✅ Air-Shaft for Unwinding & Rewinding
Equipped with inflatable air-shafts, enabling fast roll changes, stable clamping, and smoother rewinding. This design reduces downtime and ensures uniform material handling, especially critical when processing wide fiberglass rolls.

✅ Pneumatic Blade System
Air-pressure-controlled blades with individual pressure gauges apply consistent downforce, ensuring clean edges even on multi-layer fiberglass rolls.

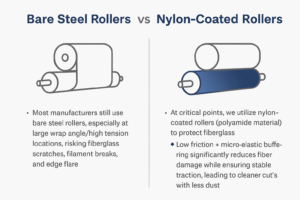

✅ Nylon-Coated Rollers – For Fiberglass Protection
Most equipment manufacturers still rely on bare steel rollers. Under high-tension and large wrap angles, this design often causes fiber scratches, broken filaments, and frayed edges.
At KABORY, we use polyamide (nylon) coated rollers in critical positions. With low friction and micro-elastic cushioning, they:

• Reduce fiber damage

• Maintain smooth traction

• Deliver cleaner edges with less dust generation

💡 This innovation extends the life of fiberglass fabrics, minimizes rework and waste, and reduces dust-handling costs.

✅ Rewinding Lift System
Supports precise rewinding, reduces operator labor, and improves safety.

✅ Industrial-Grade Frame & Ergonomic Design

Stable heavy-duty structure with low vibration, designed for continuous operation and reduced operator fatigue.

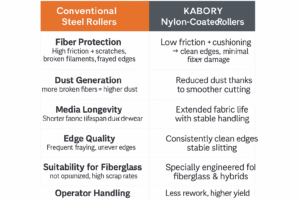

Comparison: Steel Rollers vs. KABORY Nylon-Coated Rollers



Technical Specifications

Item	Specification
Cutting Width	800 – 2600 mm
Max Unwinding Diameter	1200 mm
Slitting Speed	0 – 30 m/min
Pneumatic Blades	6 – 8
Voltage	220V / 50Hz
Power	3.1 kW
Tension Control System	Dual-end magnetic powder clutch
Deviation Correction	Hydraulic lifting rack with auto-centering
Rollers	Nylon-coated for fiberglass protection

Applications

Materials

• Needle-punched felts

• Fiberglass fabrics

• PTFE-laminated felts

• Hybrid fiberglass felts

• Synthetic leather & technical nonwovens

Typical Use Cases

• Dust filter bag production

• Filter cloth width preparation

• Pre-slitting for liquid and gas filtration

• High-temperature fiberglass filter media

Summary Benefits

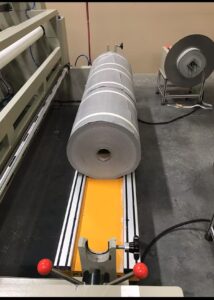

✔️ Consistent Cutting Quality – Clean edges with minimal fraying or dust
✔️ Material Savings – Reduced waste and higher yield on expensive fiberglass/PTFE media
✔️ Labor Reduction – Automated lifting and alignment, easier handling
✔️ Operator Safety – Less manual rework, reduced strain
✔️ Proven Market Reliability – Already validated in North American filter media plants

Applications

Materials

• Needle-punched felts

• Fiberglass fabrics

• PTFE-laminated felts

• Hybrid fiberglass felts

• Synthetic leather & technical nonwovens

Typical Use Cases

• Dust filter bag production

• Filter cloth width preparation

• Pre-slitting for liquid and gas filtration

• High-temperature fiberglass filter media

Summary Benefits

✔️ Consistent Cutting Quality – Clean edges with minimal fraying or dust
✔️ Material Savings – Reduced waste and higher yield on expensive fiberglass/PTFE media
✔️ Labor Reduction – Automated lifting and alignment, easier handling
✔️ Operator Safety – Less manual rework, reduced strain
✔️ Proven Market Reliability – Already validated in North American filter media plants

Why Choose KABORY?
With decades of expertise in filtration equipment, KABORY combines advanced engineering, strict quality control, and proven customer success to deliver solutions that last. Our machines and filter media are trusted worldwide in cement plants, steel mills, incinerators, mining operations, and chemical industries.

Take the Next Step
Don’t let outdated processes or unstable equipment hold your factory back. Upgrade with KABORY’s high-performance solutions to gain:

• Higher output with fewer operators

• Longer service life under extreme conditions

• Reduced maintenance, downtime, and waste

• Stronger ROI and lower total cost of ownership

📩 Contact us today to learn how KABORY can optimize your filtration production line.
