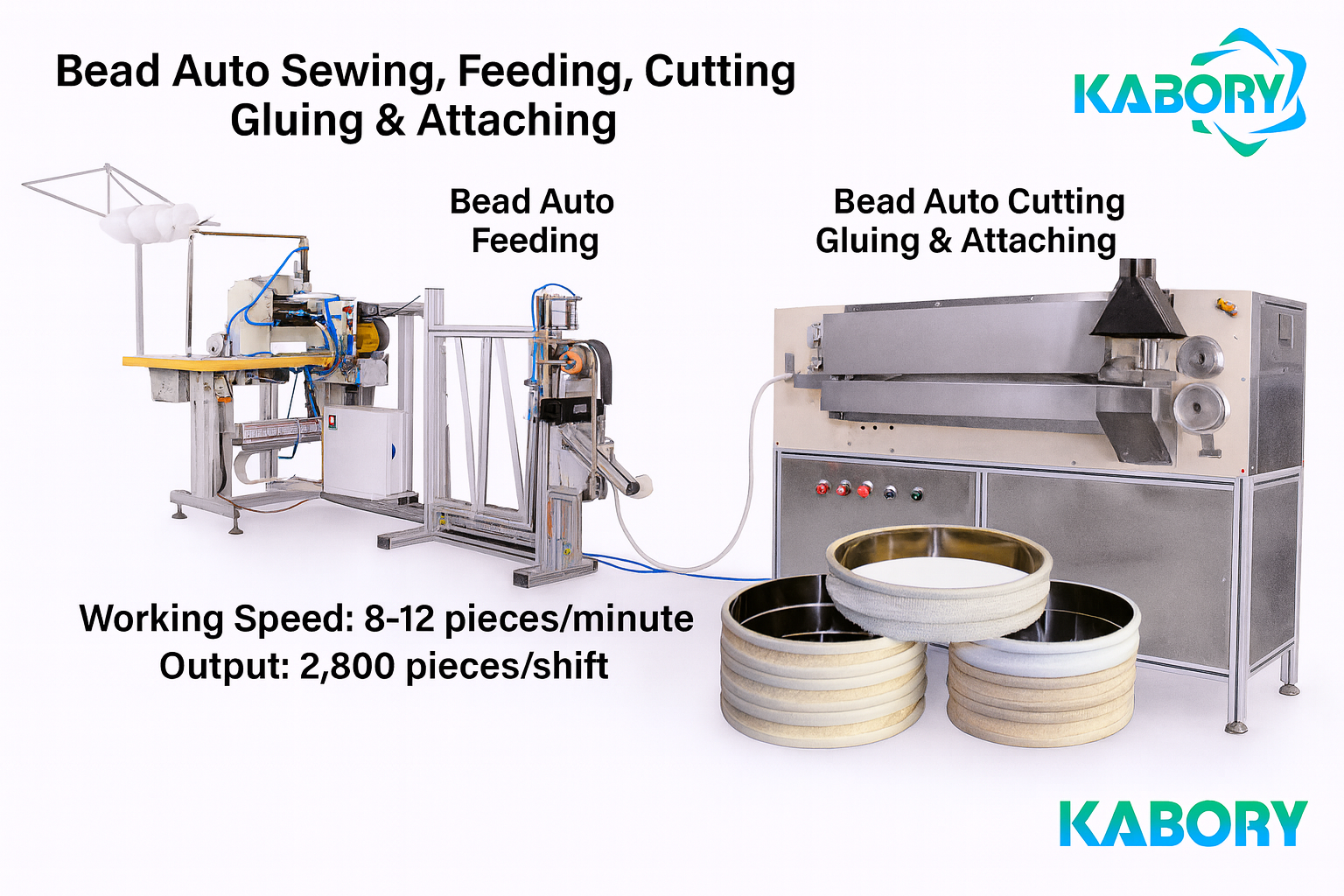

Automatic Snap Band Bead Sewing, Cutting, Gluing and Attaching Machine – 8 Pieces/Minute Guaranteed
KABORY is the world’s first to deliver a automated snap band bead sewing, cutting & gluing machine.
With stable 8 pcs/min speed and up to 2,800 pieces per shift, it replaces 4 manual stations with just 1 operator — reducing costs and boosting consistency.
Description
Filter Bag Bead/Profile Tape Sewing ,Cutting, Gluing, and Attaching Machine for Snap Band
Streamlined Sewing, Cutting, Gluing & Attaching for Snap Bands
🌍 World’s First, Proven by Years of Continuous Improvement
KABORY is the first manufacturer worldwide to successfully R&D and mass-produce a fully automated bead/profile tape sewing, cutting, gluing & attaching line. After years of refinement, our system now guarantees a stable average output of 8 pieces per minute, delivering up to 2,800 snap bands per shift — a level of performance no low-cost competitor can match.
Supported Sizes:
- Snap band diameters: 120mm–165mm (customizable up to 300mm)
- Bead widths: 25mm & 30mm (35mm & 40mm optional)
- Felt widths: 55mm±0.2 & 70mm±0.2
Manual snap band assembly typically requires four separate stations and high labor input:
| Bead Sewing: | 1 Operator |
| Hand Measuring and Cutting: | 2+ Operators |
| Manual Gluing: | 2+ Operators |
| Manual Attaching: | 2+ Operators |
🟢 With our automated solution, a single operator manages the entire process. This dramatically reduces labor costs and operational complexity while improving product consistency and production speed.
- 🔢Fully Automatic Sewing with Chain Stitch
- 🔢 Automatic Fixed-Length Cutting
- 🔢 Hot Melt Gluing at 120℃ (248℉)
- 🔢 Snap Band Placement (manual)
- 🔢 Automatic Bead Attaching
A single operator only needs to insert the snap band. The system handles everything else with precision.
- One-Operator Operation
Replace multiple operators and processes with one synchronized system. - Chain Stitch Integration
Eliminates bobbin thread changes; increases uptime. - Automatic Thread Break Detection
Halts operation on thread break to prevent defective output. - Eco-Friendly Hot Melt Glue
Odorless and safe for industrial environments. - PLC Smart Control System
Digitally adjusts speed, temperature, and cut length. Supports remote diagnostics. - 8–10 Units/Minute Output
Equivalent to up to 2,800 pieces per shift, maintaining consistent quality without increasing labor.
- ✅ Replace 4 stations with 1 smart system
- ✅ Cut labor from 6–7 people to 1 operator
- ✅Achieve up to 2,800 pieces per shift without expanding workshop space
- ✅ Improve product consistency and quality
- ✅ Reduce glue waste and material rejection
- ✅ Increase capacity and reduce workshop footprint
- ✅ Lower long-term production cost
This machine is designed for filter bag manufacturers who seek scalable, stable, and low-maintenance gluing and attachment solutions.
Industry Pioneer & Proven Track Record
KABORY pioneered the world’s first fully automated snap band bead sewing, cutting, gluing, and attaching line. After years of continuous refinement, our system has become the benchmark for automation in the filtration industry — ensuring unmatched consistency, reliability, and global recognition.
- 🌟 Revolutionary Design
Four-in-one machine: sew, cut, glue, attach. - 💰 Labor Cost Reduction
Replace multiple stations with one operator. - 🔄 Automated Precision
Integrated PLC & break detection for reliable output. - 🌍 Eco-Friendly Solution
Uses odorless, low-VOC adhesive. - 🚀 Industry-Proven Performance
Reliable in high-demand production environments.
Technical Specifications
| Model No | KAB-BSBGM120/165mm,customizable up to 300mm |
| Work Mode | Hot Melt Glue |
| Working Temperature | 120℃ / 248℉ |
| Material | Needle Felts ,Fibergalss Fabrics |
| Bead Width | 25mm & 30mm (35mm & 40mm optional) |
| Felt Width | 55mm±0.2 & 70mm±0.2 |
| Speed | 8–10 pieces/minute |
| Snap Band Diameter | 120mm–165mm (up to 300mm optional) |
| Voltage | 220V 50/60Hz |
| Air Supply | 0.8Mpa |
